Vinyl Siding Expansion and Michigan's Temperature Swing

Almost every vinyl siding failure that surfaces in Genesee County a few winters after installation traces back to one thing: the panels were never left free to move. Vinyl is a plastic. It gets longer when it is hot and shorter when it is cold, and it does so far more than the wood, steel or fiber cement it hangs next to. A full-length panel measured on a ninety-degree August afternoon is measurably shorter on a January morning below zero, while the wall it is fastened to barely changes at all. Every detail in how vinyl gets hung exists to absorb that difference quietly.

Michigan gives that difference more room to cause trouble than most of the country does, because the annual swing here is wide and it repeats without fail. A Flint-area wall runs the full range every single year, so the same panel expands and contracts hundreds of times across its service life. Installed correctly, nothing happens. The panel slides on its fasteners and the movement disappears into the laps and the trim. Installed tight, the panel has nowhere to put the stress, so it buckles, oil-cans, splits at the nail slots, or tears itself off the corner post. This guide covers what that looks like and what to check.

Why does vinyl siding move so much when the weather changes?

Vinyl siding is polyvinyl chloride, and PVC expands and contracts with temperature several times as much as wood does and far more than masonry. That is a material property, not an installation defect. Every vinyl panel ever made behaves this way, and the industry's answer has never been to try to stop it. The answer is to design the entire system around letting it happen invisibly: elongated nail slots instead of round holes, panels that hook into the course below rather than being pinned to it, and receiving channels at every termination deep enough to swallow a panel end as it grows and shrinks through the year.

That is why a vinyl wall is not fastened the way a wood wall is. Every fastener goes through the middle of an elongated slot rather than at either end, so the panel has travel in both directions. Every fastener is driven until it is snug and then backed off, leaving the panel hanging rather than clamped. And every panel end stops short of the bottom of the channel it sits in by an amount that depends on how cold it is the day the panel goes up. None of the three is optional detailing a fast crew can skip. Together they are the difference between a wall that looks the same in year fifteen and one telegraphing waves by year three.

What does a bad expansion gap actually look like on the wall?

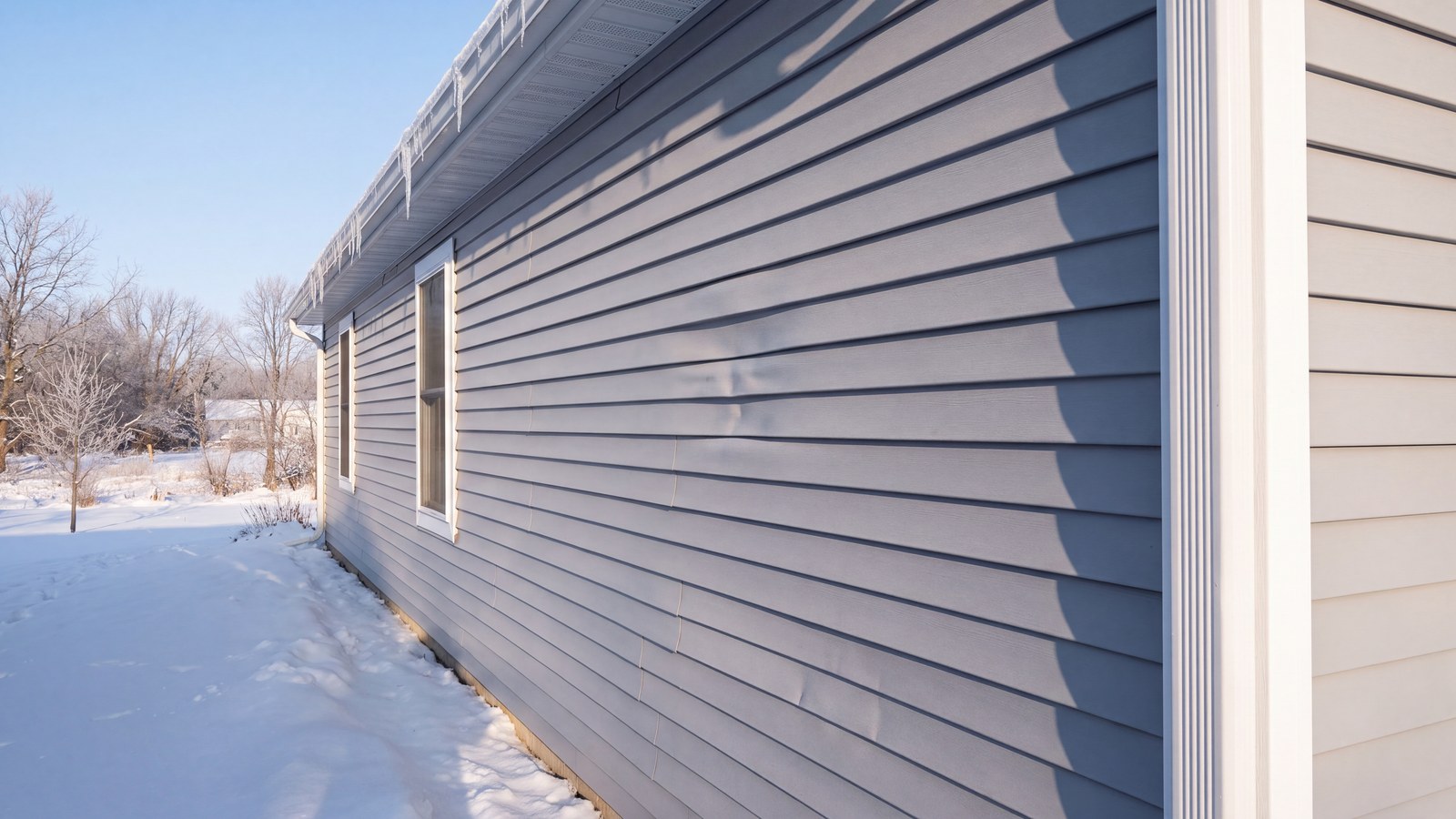

The most common symptom is waviness: long, shallow ripples running horizontally along a course, usually most obvious in raking afternoon light on a south or west wall. That is a panel that grew, found both ends blocked, and had nowhere to go but outward. It tends to show on the longest uninterrupted runs first, because a longer panel produces more total movement than a short one squeezed between two windows, and it is often invisible when you look at the wall straight on.

The second symptom is cracking, and it is a cold-weather symptom. Vinyl gets brittle in the cold. A panel held in compression through July that then contracts hard in January will often split at its weakest point, which is the nail hem, the slotted strip along the top edge. A crack there is hidden from the ground because the course above covers it, so the first thing a homeowner actually notices is a panel that has come loose or blown off entirely during an ordinary windy night.

The third is movement at the terminations. Panel ends creep out of a J-channel and leave a visible gap against the trim. A corner post separates from the courses it is supposed to be holding. A course unzips from the one below after a windy night, which reads as storm damage but is often a panel that was locked at both ends and finally pulled itself apart. Any of these on a wall under fifteen years old is worth an inspection rather than a patch, because the same install habit produced the whole elevation.

• Long horizontal ripples on the biggest uninterrupted wall runs
• Panels that look fine in flat light and wavy in low afternoon sun
• Loose or missing panels after a cold snap rather than after a storm
• Gaps opening between panel ends and J-channel or corner posts
• Nail heads showing through the face of a panel

Does the time of year the siding goes up change how it is hung?

Yes, and it is one of the few installation variables that is genuinely date-dependent. A panel installed on a cold day is already near the short end of its range, so nearly all of its future movement will be expansion and it needs a larger clearance left at the ends. A panel installed in summer heat sits near the long end and will mostly contract, so the clearance is smaller. Manufacturer instructions state the required clearances and the temperature threshold that switches between them. The correct clearance for the day is a published number, not a feel.

This is also why the Michigan Residential Code, which took effect on February 8, 2016 and remains the state's current residential code, points installers at the manufacturer's printed instructions rather than legislating the gap itself. The code sets the fastening rules: how deep the fastener goes, how thick it is, how far apart fasteners can sit. The manufacturer sets the clearance for the temperature. Both apply to the same wall at the same time, and a crew that treats the instruction sheet as packaging is the one that produces a wavy elevation in year three.

The practical consequence for scheduling is smaller than people expect. Vinyl can go up in cold weather. It simply has to be carried and cut more carefully, because cold panels crack, and the end clearances have to be opened up to match the temperature. What is not acceptable is running summer clearances on a January install because that is the habit the crew brought with them from August.

• Ask which panel line the quote is based on and whether its instruction sheet is on site
• Confirm the end clearance that will be used for the temperature on install day
• Expect wider gaps at trim on a cold-weather install than on a summer one
• Allow slower staging in winter, since cold panels crack when handled and cut

What actually goes wrong when vinyl is nailed tight?

Nailing tight converts a floating panel into a fixed one, and a fixed panel under thermal load has to put the stress somewhere. In hot weather it goes into compression, so the panel bows outward between fasteners and produces the ripple. In cold weather it goes into tension, so the panel pulls against the fastener shanks until the slot elongates, tears, or splits the hem outright. Neither failure shows up immediately, which is exactly why the defect is so common: the wall looks perfect at the final walkthrough and for a season or two afterward.

The code language is specific about the fastening itself. The prescriptive method for vinyl siding in the residential code requires fasteners to penetrate at least one and one-quarter inches into wood framing or furring, with a shank of at least 0.120 inch and a head of at least 0.313 inch, spaced no more than sixteen inches on center for horizontal siding. Those numbers are what keep a panel on the wall under wind uplift. What they do not address is how tightly the fastener gets driven, and that is precisely where installations go wrong.

The check is simple enough that a homeowner can do it from the ground on the first course. A correctly hung panel slides side to side roughly a quarter inch when you push it. If it will not budge at all, it is nailed tight. If it rattles loosely, the fasteners are either too shallow or missed the framing entirely and landed only in sheathing. Both are worth raising while the crew is still on site rather than discovering them two winters later.

How do I check my own siding after a Genesee County winter?

Do it in April, on a clear afternoon, and look from the side rather than straight on. Stand at the corner of the house and sight down each wall at a shallow angle so the low sun rakes across the surface. Waves and bows that are invisible head-on jump out immediately in that light. Walk all four elevations rather than the one you can see from the driveway, and give extra attention to the south and west walls, which take the most solar load and the most wind and usually fail first.

Then get close on the terminations. Look where panel ends meet the J-channel around windows and doors, at both corner posts, and along the bottom starter course. You are looking for daylight, for panel ends that have crept out of a channel, and for any course that has separated from the one beneath it. Push a few panels sideways to confirm they still move. Judge what you find against how the wall looked last spring rather than against a brand-new house, because some settling is normal and change is the useful signal.

Photograph anything that looks wrong, from the same spot each year if you can manage it. A dated photo series is the single most useful thing a homeowner can hand an installer or an insurance adjuster. It separates progressive thermal damage, which builds slowly over seasons and points at how the wall was installed, from a single storm event, which appears all at once and is a claim. Without the series, those two look identical on the day someone finally comes out to look.

• Sight down each wall at a shallow angle in low sun, not straight on
• Check J-channel at every window and door for panel ends that have crept out
• Push panels sideways: a correct one slides, a tight one will not move
• Look for splits at the nail hem, where the course above hides them
• Photograph from the same spot each spring to build a comparison series
